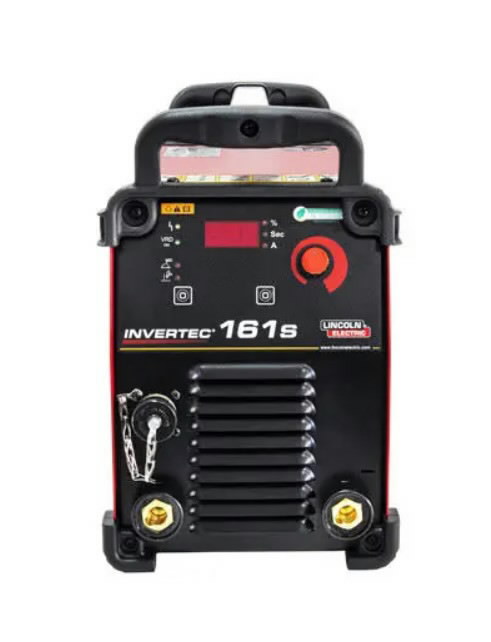

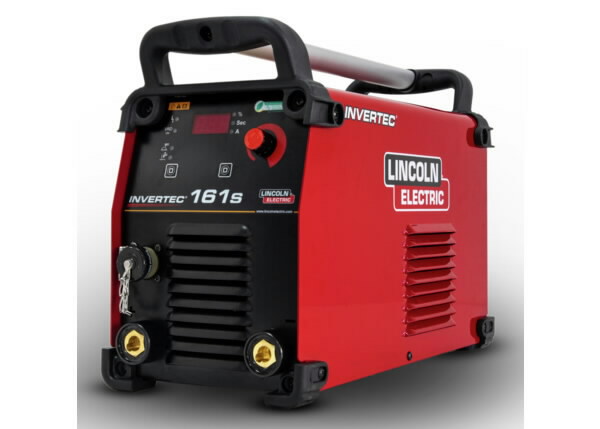

The Invertec® 161S offer much more than you would expect from a welder this size. Professional inverter type electrode welding machine with microcontroller controls.
Low energy consumption and high duty cycle: machine is ideal for maintenance and for all professional, industrial or construction-site/ shipyard applications.
Remote control connection allows to adjust welding parameters during the welding.
Compatible with motor generator. Equipped with digital display. The machine has excellent welding arc properties. Power Factor Correction PFC gives low current consumption and energy saving.
Usable with long primary extension cable (up to 70 m in 2.5 mm² section).
Welding modes MMA (coated electrode welding) and Lift TIG+. Built-in Hot Start, Anti-Stick and Arc Force features.
Primary voltage 230V-1ph +/- 20%,
Electrode diameter 1.6 - 4.0mm,
Welding current 5-160 A,
Duty cycle 160A @ 50%; 130A @100%,
Generator power: 8 kW,
Dimensions - 320x170x395mm,
Weight 9 kg.
Operating temperatur -10 to +40C.
The set includes a 2m power cable and remote control adapter. Welding cables not included.
