Product info

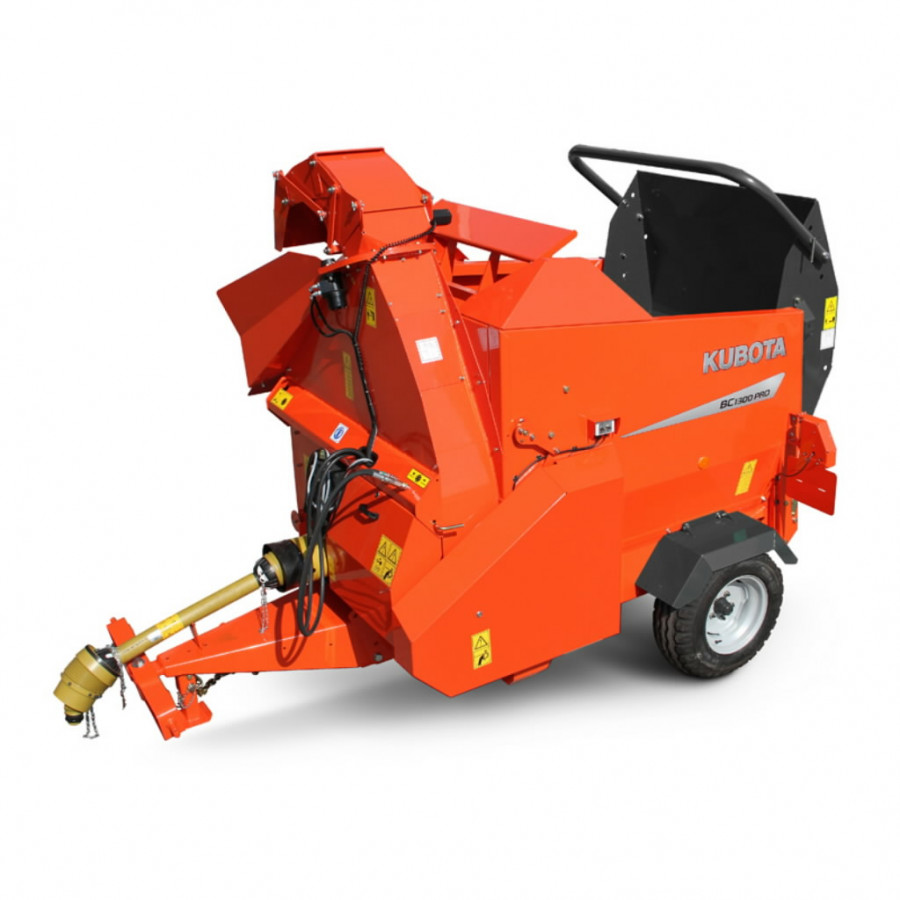

Trailed bale chopper
Capacity 3m3
Round bale diameter up to 2,0 m
Single drum
Volume segment bale chopper designed as multi-purpose solution for straw chopping and silage feeding
4 stage swivel chute
Silent and longlife V-belt drive
Slipping protection if the drum becomes blocked
UltraGlide Wear Strips increasing the conveyor life
Hydraulic chute rotation up to 260°
Width of rear door 1.38m – best in class
Deep, curved design of the tailgate ensures the bale is kept firmly inside the tailgate
Premium Electric Control, swivel chute easily operated by joystick
Remote controlled switch for floor chain and tailgate
Anti-blockage solution for maize, clamp silage and silage bales
Cubic volume: 3 m3
Blowing distance (straw): 20 m
Gearbox: 2 speed
Overall length (door closed): 3,95 m
Overall height (swivel chute): 2,66 m
Overall height (swivel chute opened): 3,06 m
Overall width: 2,01 m
Load capacity: 1250 kg
Unloaden weight: 1835 - 1885 kg
Max round bale width: 1,35 m
Max round bale diameter: 2,00 m
Max square bale size: 1,2x1,2x2,7 m
Chute: hydraulic
Power requirement at PTO: 60 hp
PTO input speed: 540 rpm
Safety protection: PTO Friction Clutch & Over-run
Hydraulic requirements: 40 litres/min @ 180 bar
No of knives on drum: 14, optional 28
Attachment as 50mm swivel eyelet, possible as special order also 2-point linkage (lift arm attachment)
Manufactured in Italy
Warranty 2 years
Pictures are illustrative and for non-contractual use
