Product info

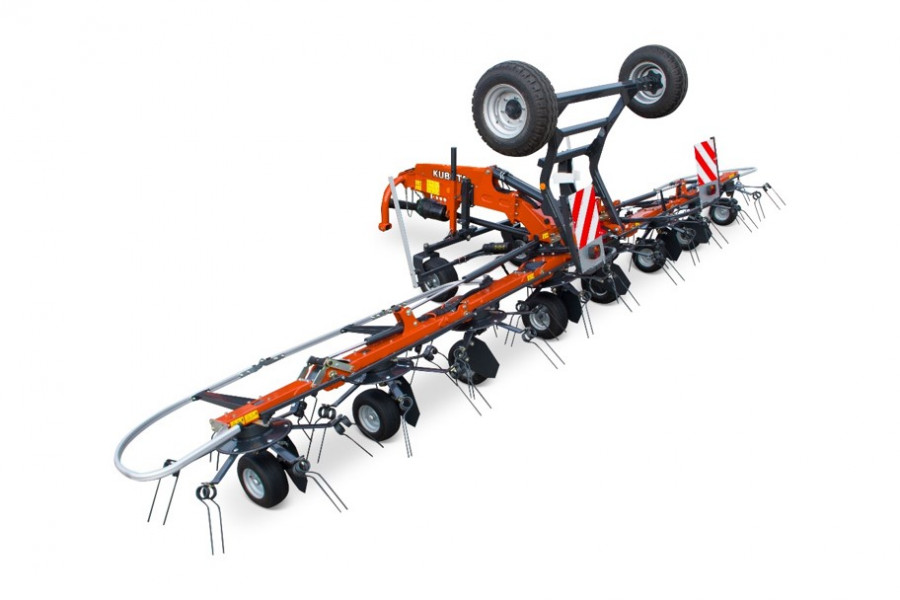

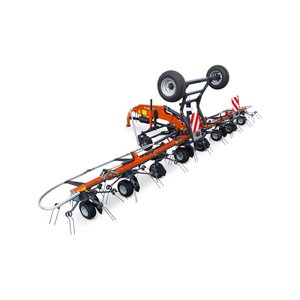

ProfiLine tedder for midrange and large farms
Theoretical capacity 9,0 ha/h
Connection to 2-p linkage arms CAT2
Maintenance-free oil-immersed gearbox
Maintenance-free driveline and hinges
Carrier frame solution for use with lower power tractors. Wide track for smooth running characteristics
Central adjustment for border tedding – set hydraulically from the tractor
Optional hydraulic headland kit available.

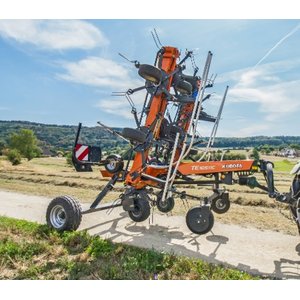

HexaLink provides the option fold arms into very compact transport and storage dimensions
U-joints provides extremely accurate and reliable power transmission where pressure is highest
Working width: 11,20m
Width, working position: 11,70m
Transport width: 2,96m
Transport length: 4,26m
Storage height: 3,94m
Capacity, theor.: 9,0 ha/h
Weight: 2225 kg
Hitch: CAT2, 2p linkage
No of rotors: 10
No of tine arms per rotor: 6
Wheels (rotor): 16x6,50-8
Tyres on central unit: 18,5x8,5-8
Carrier frame wheels: 10.0/75-15.3, 2,45m track
Oscillation damper/integral lock: +
Adjustment of spreading angle: +
Cab controlled border clear. system
Warning panels with integrated lighting
Min power requirement 70 hp
Pictures are illustrative and for non-contractual use
* Tandem axle
* Anti wrapping plates 9pcs
As optional equipment available (not included in price):
* Tandem land wheel
* Tine safer clips 60pcs
* Spare wheels 16", 18,5"
* Reduction gearbox for night swaths
* Electric comfort control
Warranty 2 years
