Product info

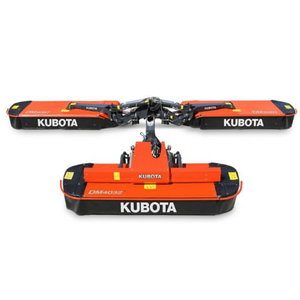

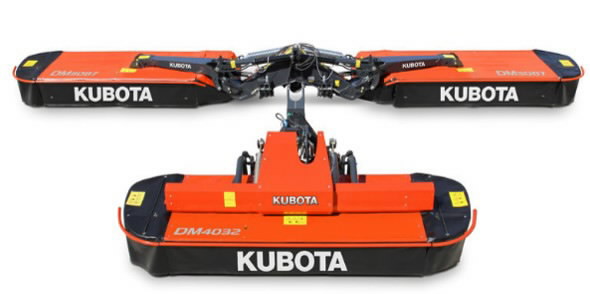

Butterfly mower with fast changeable knives
Hitch CAT 2/3
All Kubota mowers are equipped with Triangular Counter-Rotating Discs, 3 blades per disc for constant cutting - clean cut, less wear for blades
Fully welded cutterbar design, no bolt connections
Very low power consumption and noise level - thanks to specially designed cutterbar bearings and transmission details
Mowing units positioned very close to the tractor ensure gravity point close to the tractor
Cutting width 8,7 m
Transport width <3 m
Transport height <4 m
PTO 1000 rpm, overrun clutch + friction clutch
16 discs each with 3 blades
Cutting height 30-60 mm
Mowing angle: -15/+15
BreakAway, NonStop, spring loaded auto reset
Hydraulic lift on headlands up to 400 mm
Supplied with two mounting options of the mowing section, what ensures optimal overlap between a front and rear mounted unit
Vertical Parking Stand
Swath discs (RH)
Hydraulic lift
100° Vertical Transport Position
Weight 1327 kg
Power requirement min 140 hp
No of hydraulic outlets: 2D
Pictures are illustrative and for non-contractual use
* high cut skids 40mm
* protection cutterbar-end 2 pcs
As optional electric lift control joystick available
Optional hydraulic ground pressure adjustment
Manufactured in Denmark
Warranty 2 years
