Product info

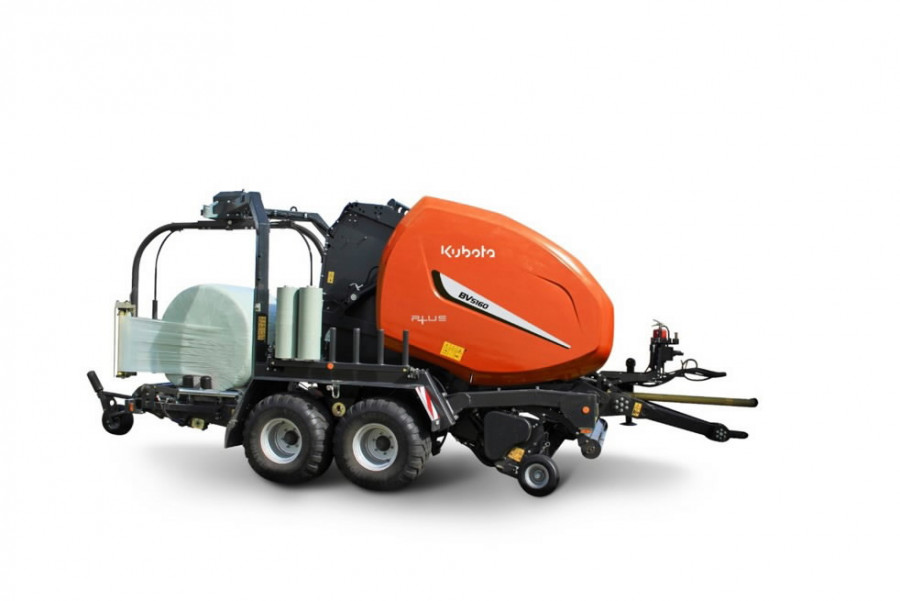

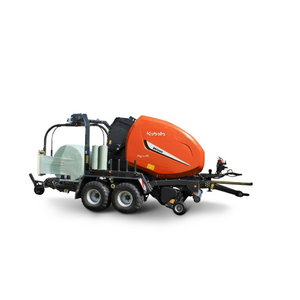

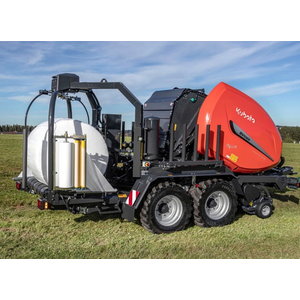

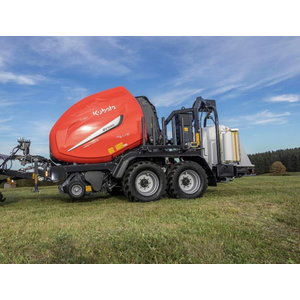

Variable chamber tandem axle combibaler
Centralised lubrication
Automatic chain lubrication
The ideal solution for cost effective one-man operation
Twin pre-stretchers for high speed wrapping
Perfect bale stability even in hilly conditions
Low net loading height and hydraulic operation of spare film cassettes ensure long days baling: high on output and low on stress
Full ISOBUS compatibilty

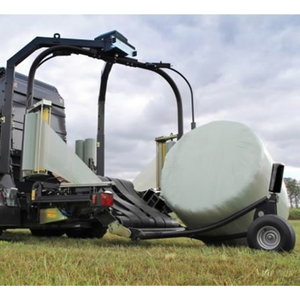

Wrapper with double satellite for fast wrapping
Satellite tower adjustable in three height positions
Wrapping table rail cleaning device
Wrapper triggers tailgate opening at end of net cycle for automatic bale transfer and wrap cycle start
All bale sizes up to 1.65m can be handled
Low centre of gravity for enhanced machine stability
Four guiding rollers ensure perfect bale alignment
Twin cassettes for 10 spare film rolls
Convenient and simple operation from new remote control panel
Low ground pressure in field and high stability during road transport & reduced compaction
The complete machine functions under full automation
Length: 7,45 m
Width: 2,98 m
Height: 3,00 m
Weight: 6400 kg
No of rollers: 3
No of belts: 5, endless type
Belt width: 220 mm
Bale diameter: 0,6 - 1,65 m
Bale chamber width: 1,20 m
Central roller bearing greasing system: +
Working width: 2,20 m
Tine rows: 5
Tine spacing: 60 mm
Crop roller: +
2 pneumatic gauge wheels: +
SuperCut intake: 25 knives, selectable 0, 6, 12, 13 or 25
Single knife protection: +
Drop floor: +
Automatic chain lube system: +
Cam clutch protection: +
Wrapping unit
Support rollers/belts: 2/4
Film pre-stretchers:2
Film cutters: 2
Film roll magazines: 10
Bale turner: +
Isobus compatibilty: +
Isomatch Tellus Pro: +
Hydraulic outlets: 1 SA, 1 DA, free return
Wheels: 560/45-22.5 , optional 710/35-22.5
Brakes: air
Reversible drawbar: +
PTO speed: 540 rpm
Min power requirement: 95 hp
Available as optional equipment (not included in price):
* Falling mat Flexiwrap
Manufactured in Italy Kverneland factory
Warranty 2 years/1000 bales
Pictures are illustrative and for non-contractual use
